Xinyuan — C Series
C95

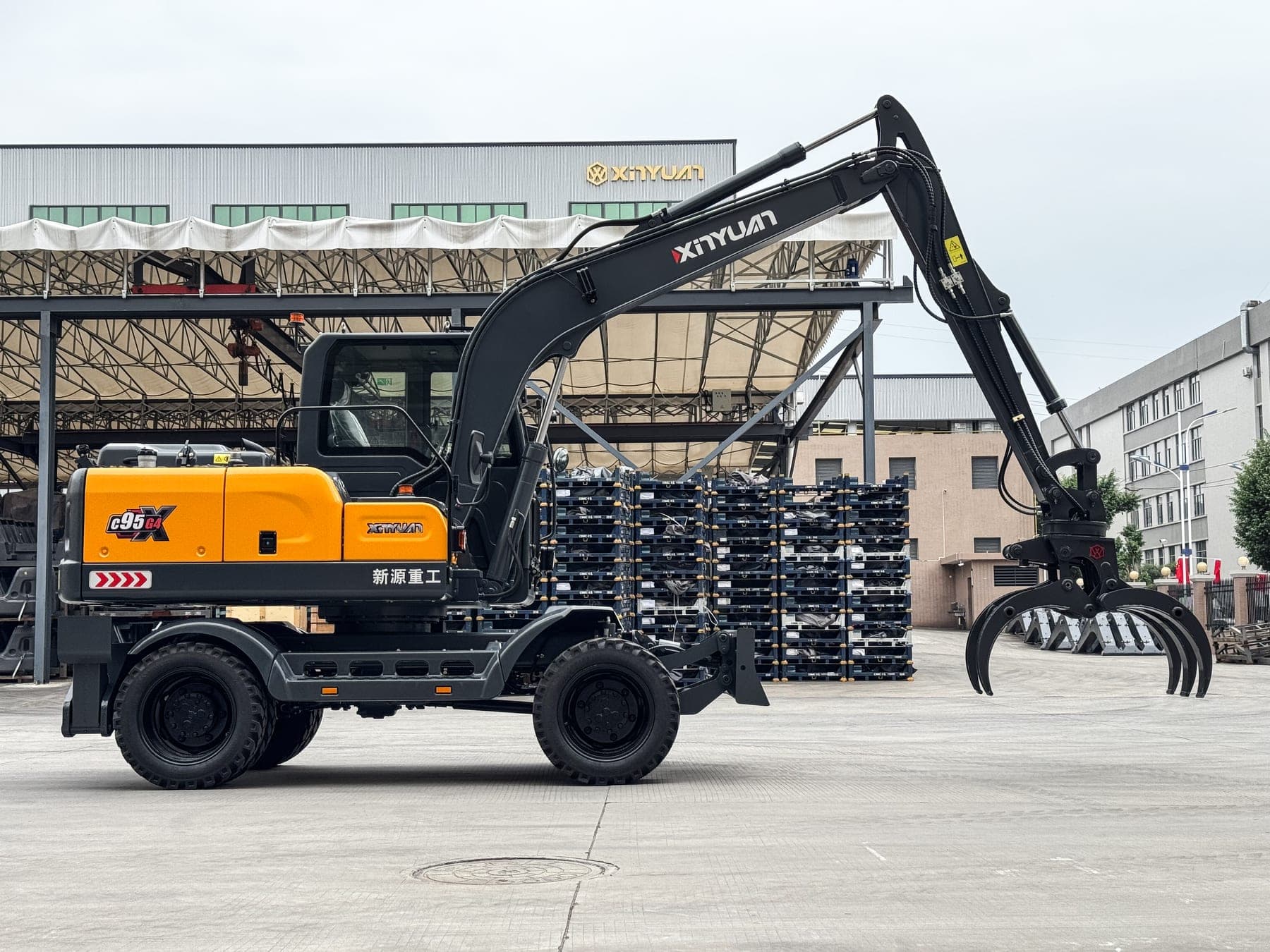

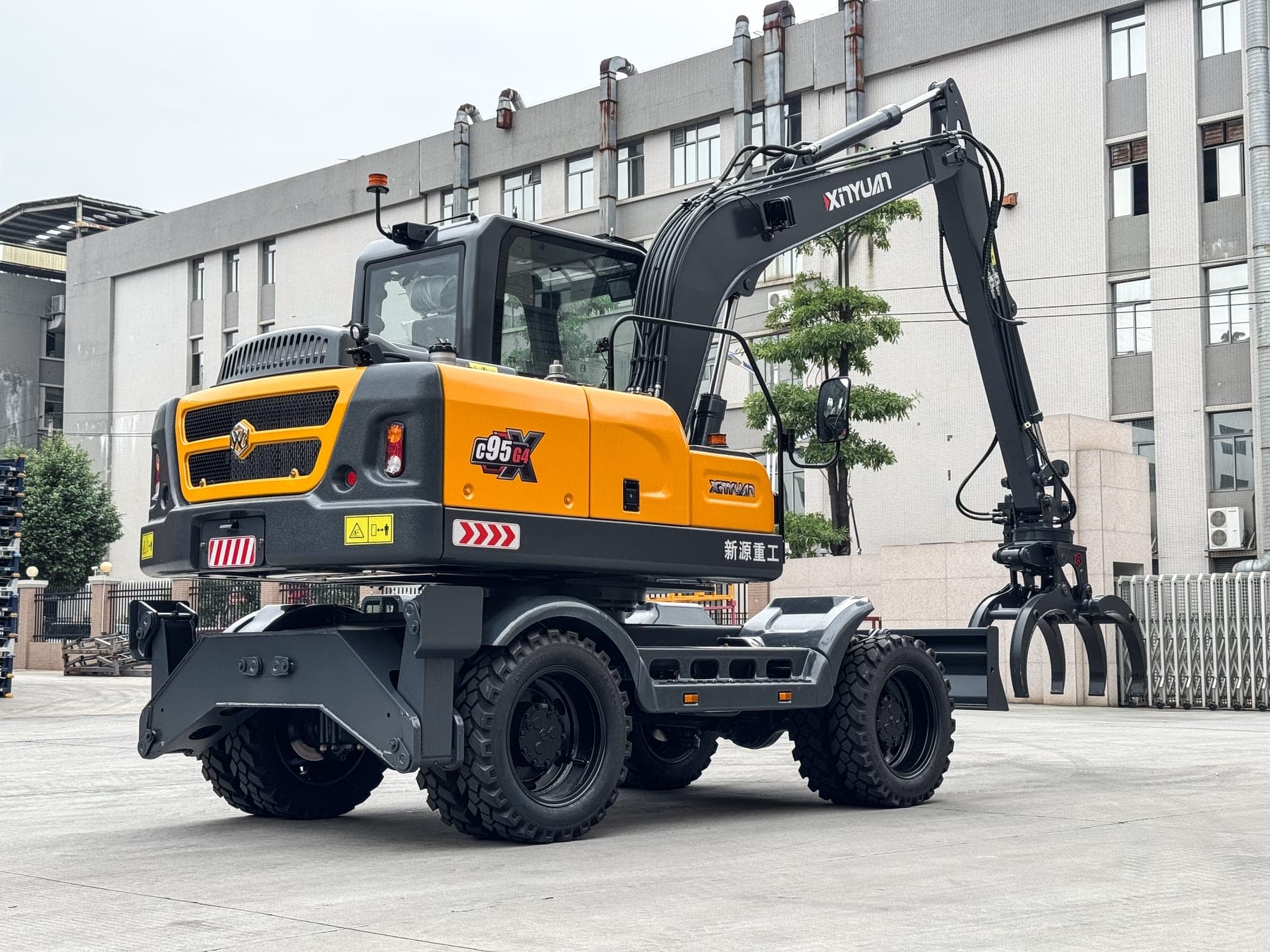

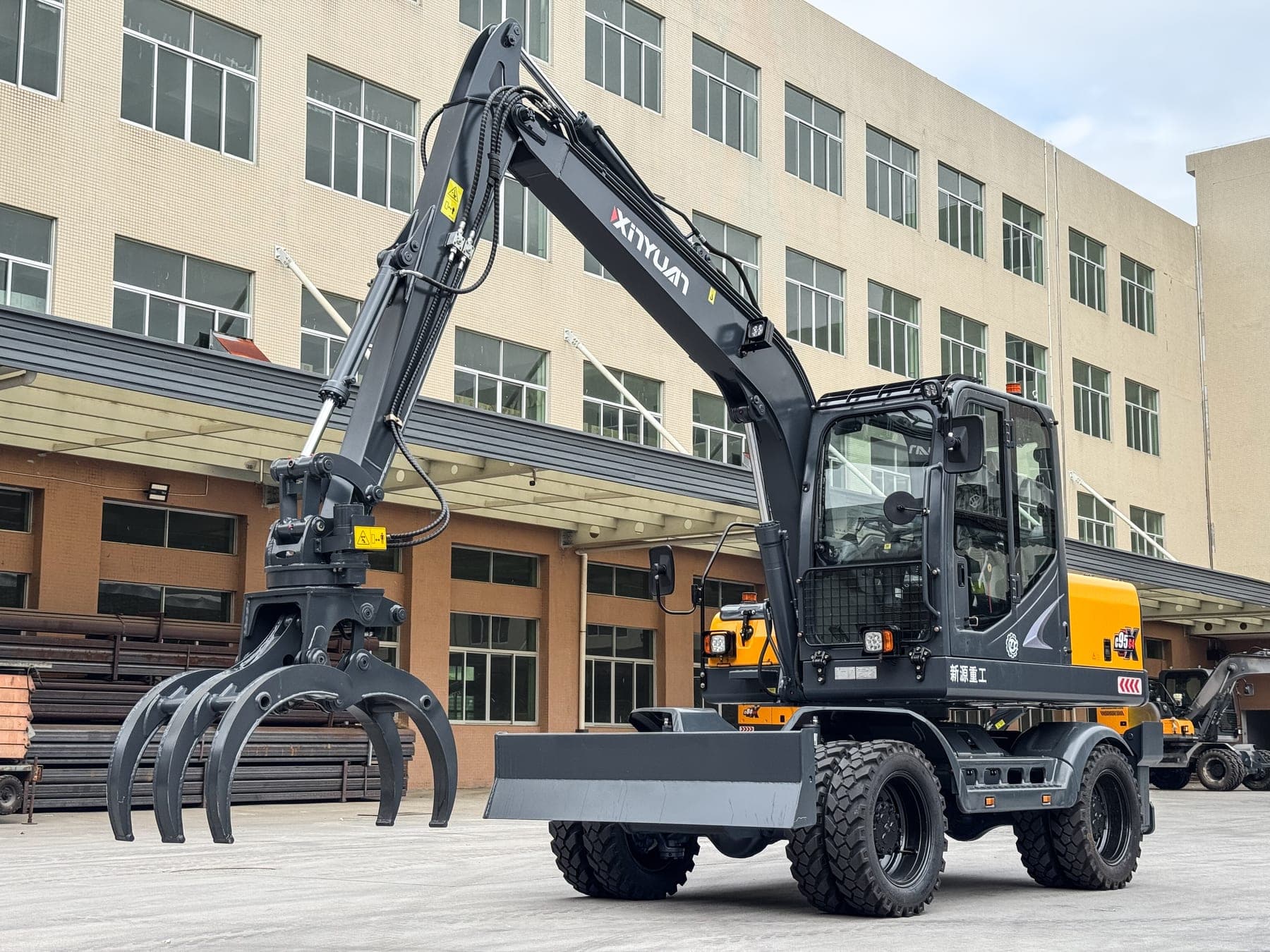

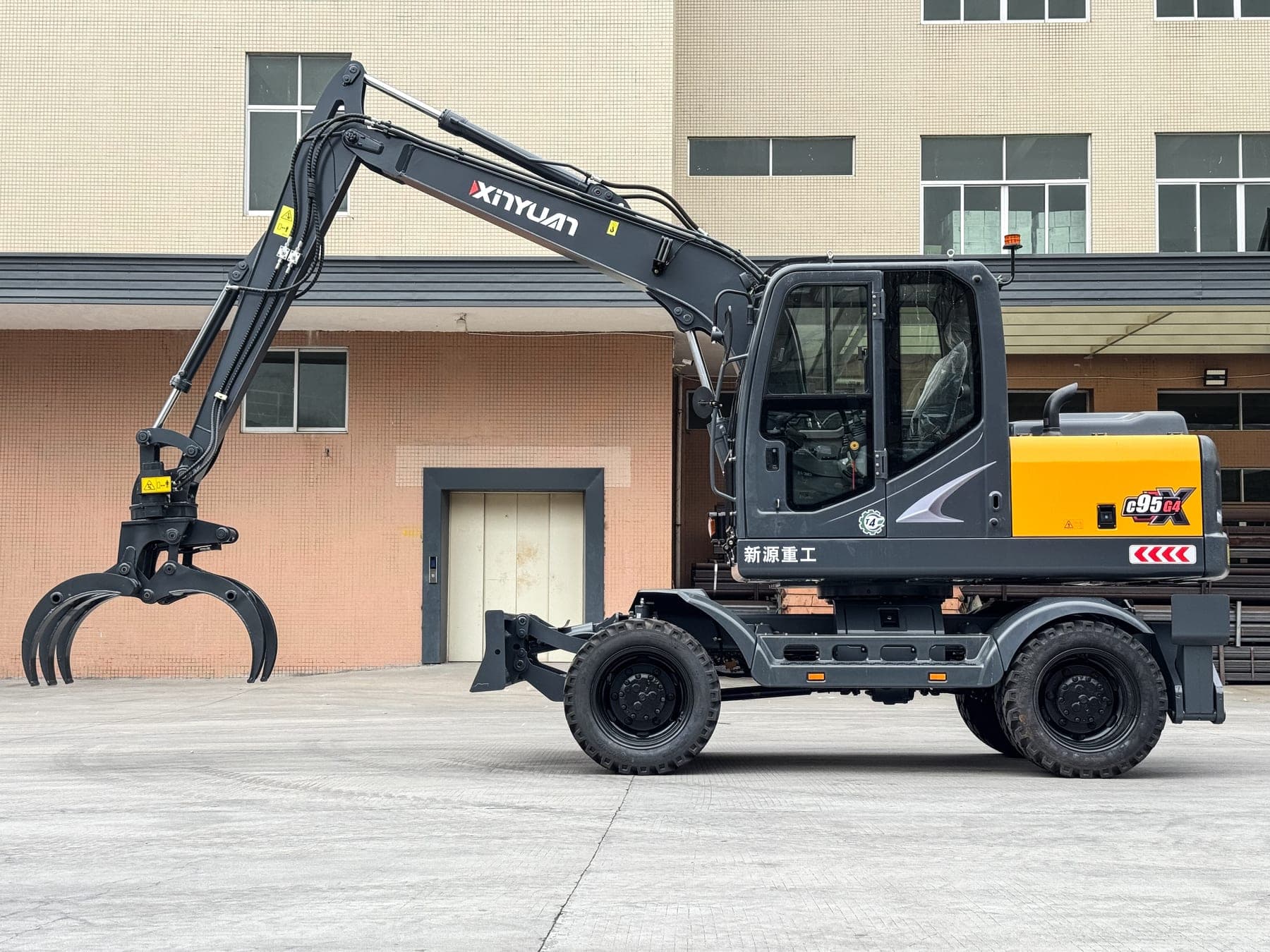

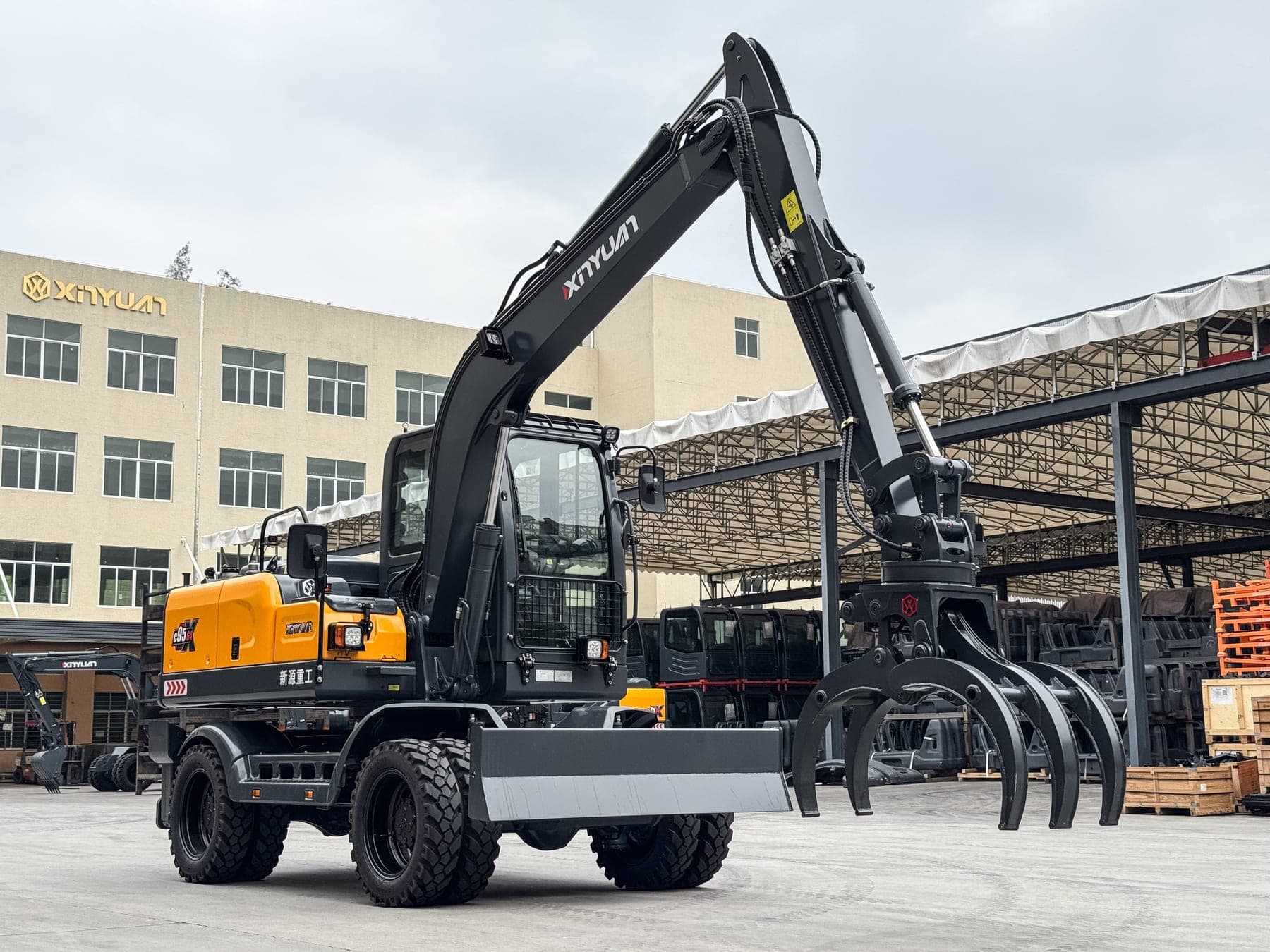

Grapple build, on outriggers
The grapple configuration of the 7.1 tonne platform: outriggers spreading to 2,805 mm and a long arm reaching 7.14 metres.
- Operating weight
- 7,100kg
- Bucket capacity
- 0.2-0.35m³
- Engine power
- 48kW
- Max digging reach
- 7,140mm

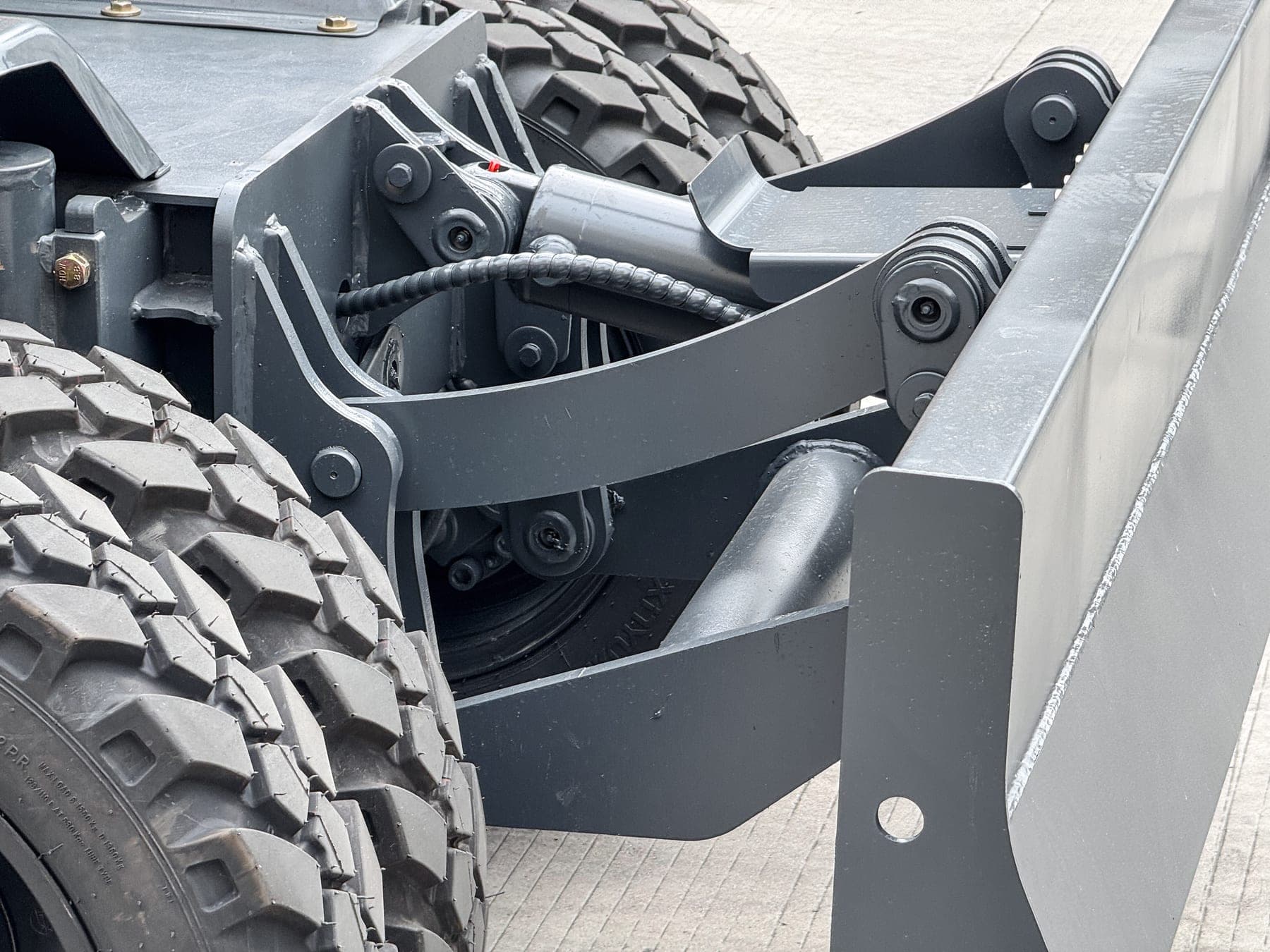

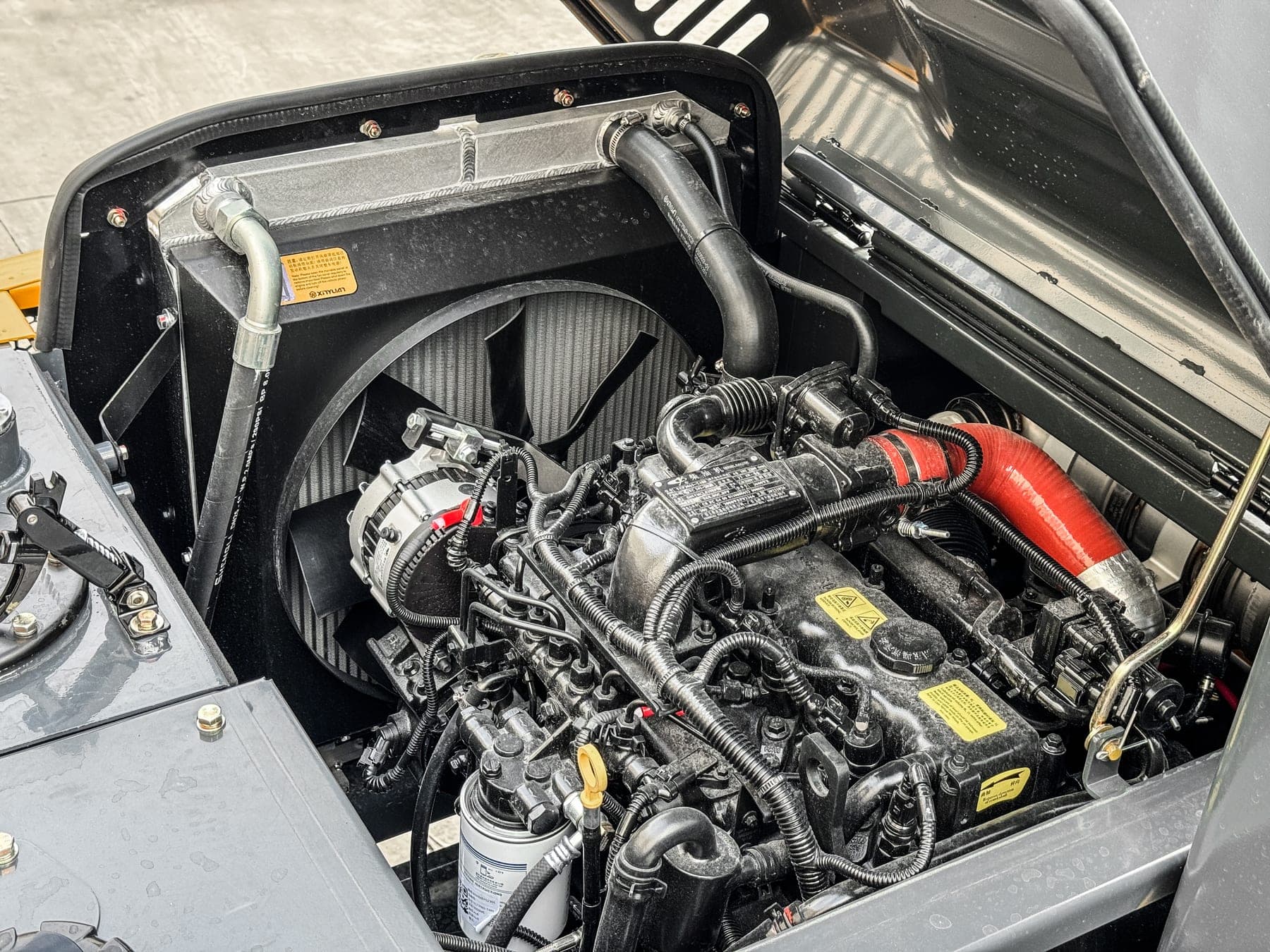

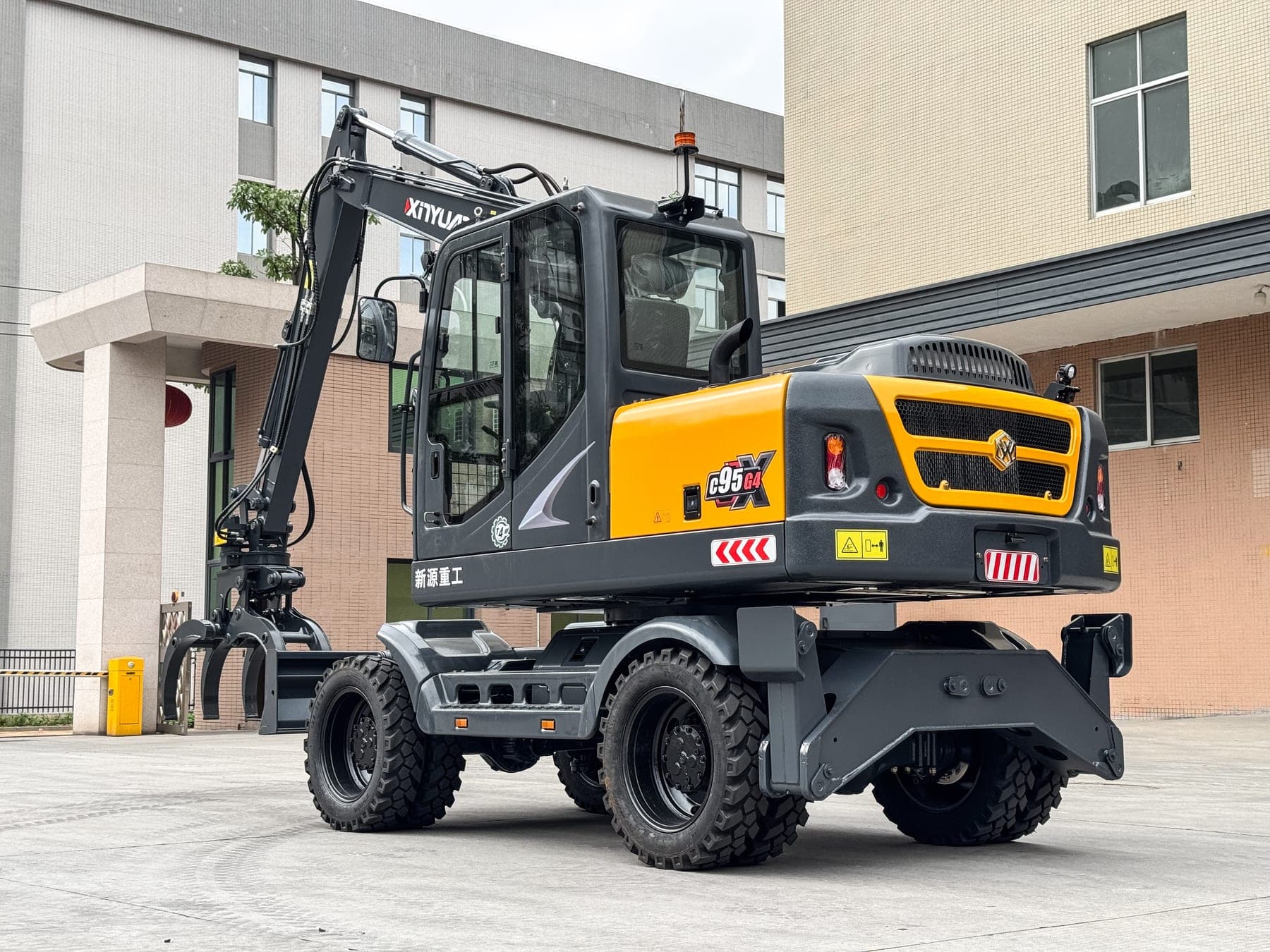

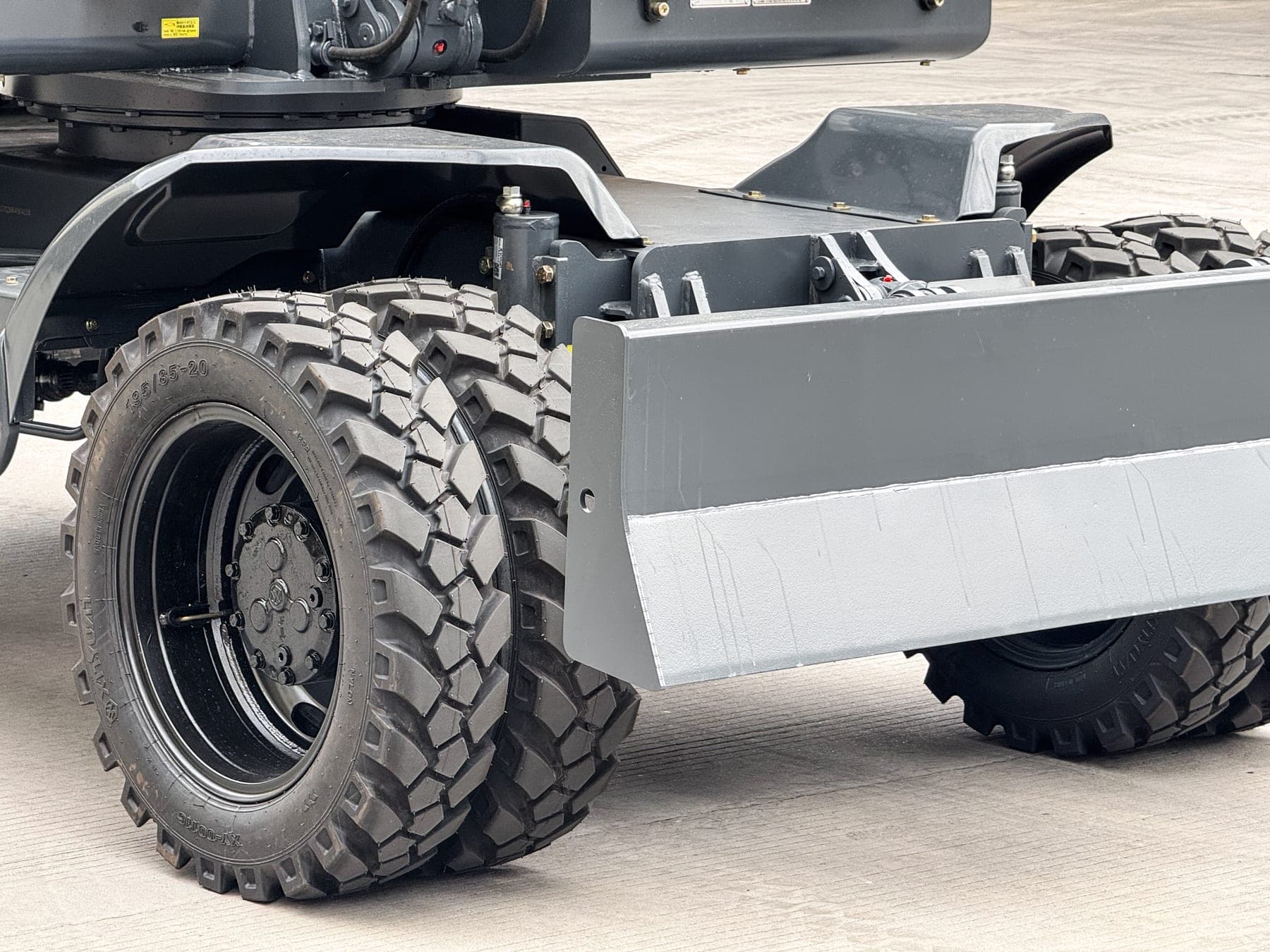

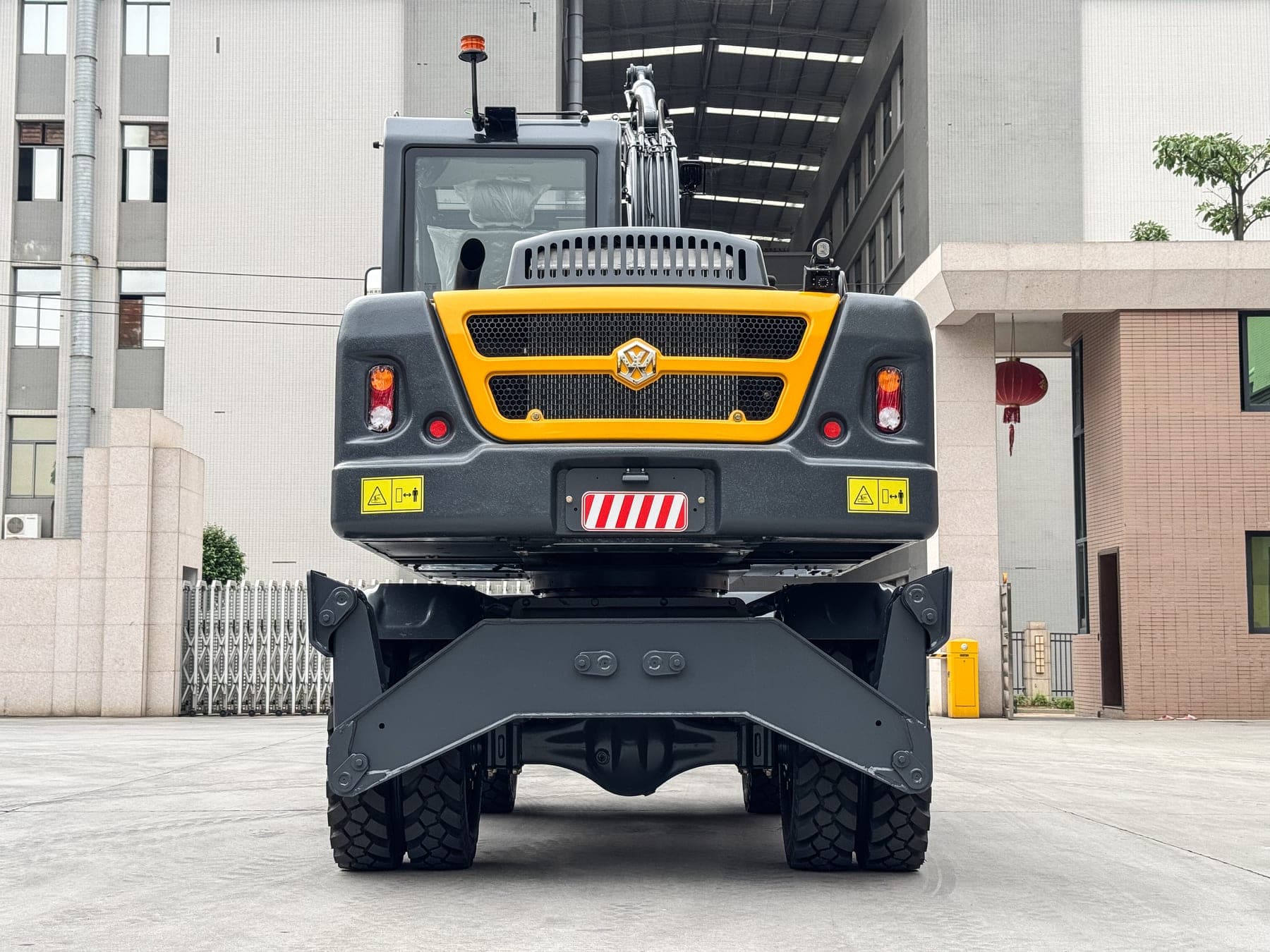

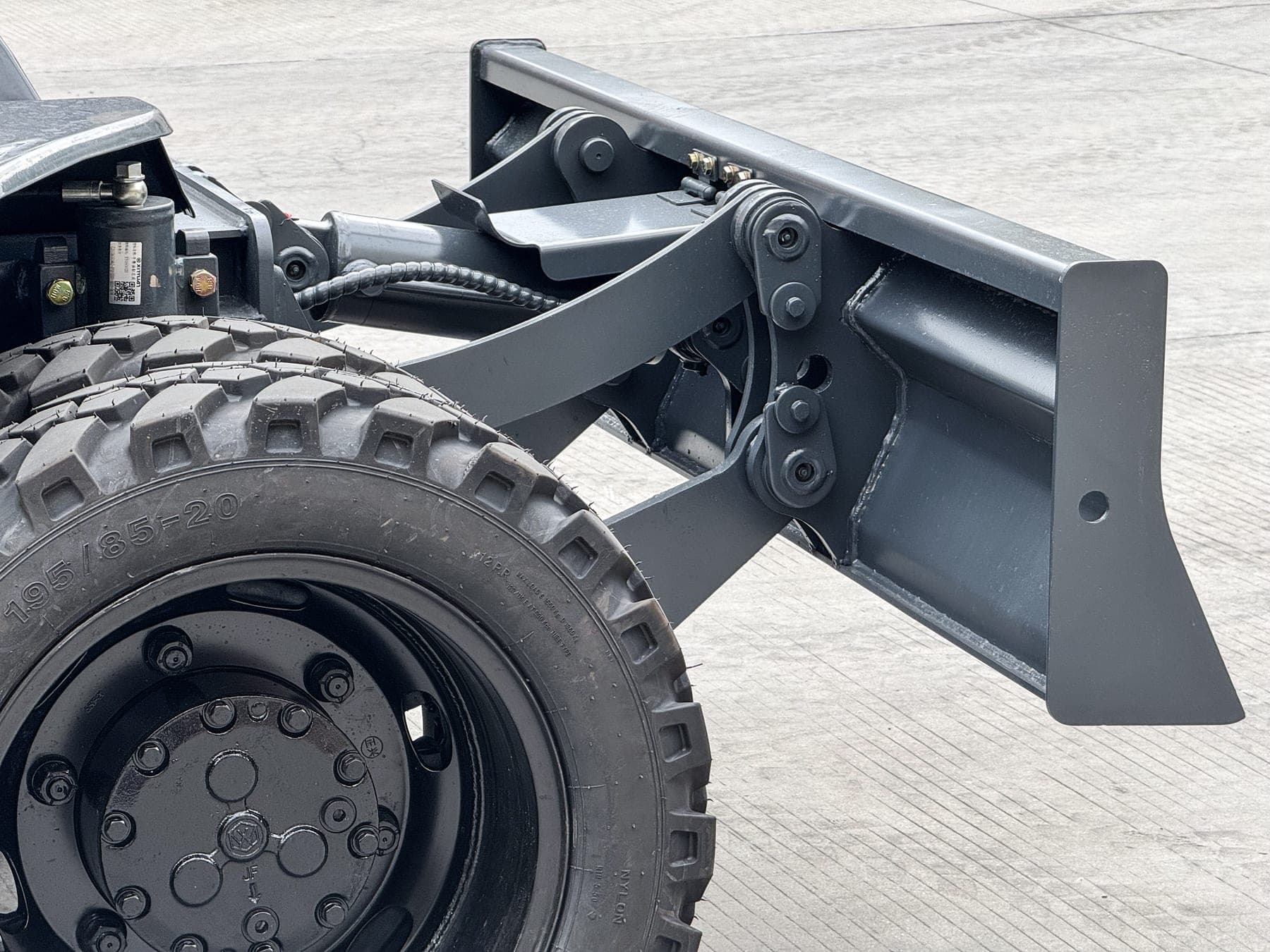

The C95 G4 is the grapple build of Xinyuan's 7.1 tonne platform. Outriggers fold out from 1,970 to 2,805 mm to plant the machine for handling out to the side, and a longer 2,300 mm arm takes the reach to 7,140 mm - almost two metres further out than the machine is long. A Yuchai F3065-T480 at 48 kW, 30 km/h on the road, and a dozer blade that drops 110 mm below grade.
Specifications
Technical specification
Figures below are as supplied by the manufacturer.
C Series
Explore other variants
Every other model in the C Series line — swing through the family to compare before you decide.
Specifications may vary by region and configuration.
Compatible attachments
What fits this excavator
Attachments matched to the C95 — swing through to see what the excavator can be turned into.
Fitment is by carrier class. Confirm with us before ordering.
