Xinyuan — C Series
C150
The largest in the range
A 12.5 tonne machine on 118 kW, reaching 8.39 metres out with a 0.55 m³ bucket for large-site excavation.
- Operating weight
- 12,500kg
- Bucket capacity
- 0.55m³
- Engine power
- 118kW
- Max digging force
- 75kN

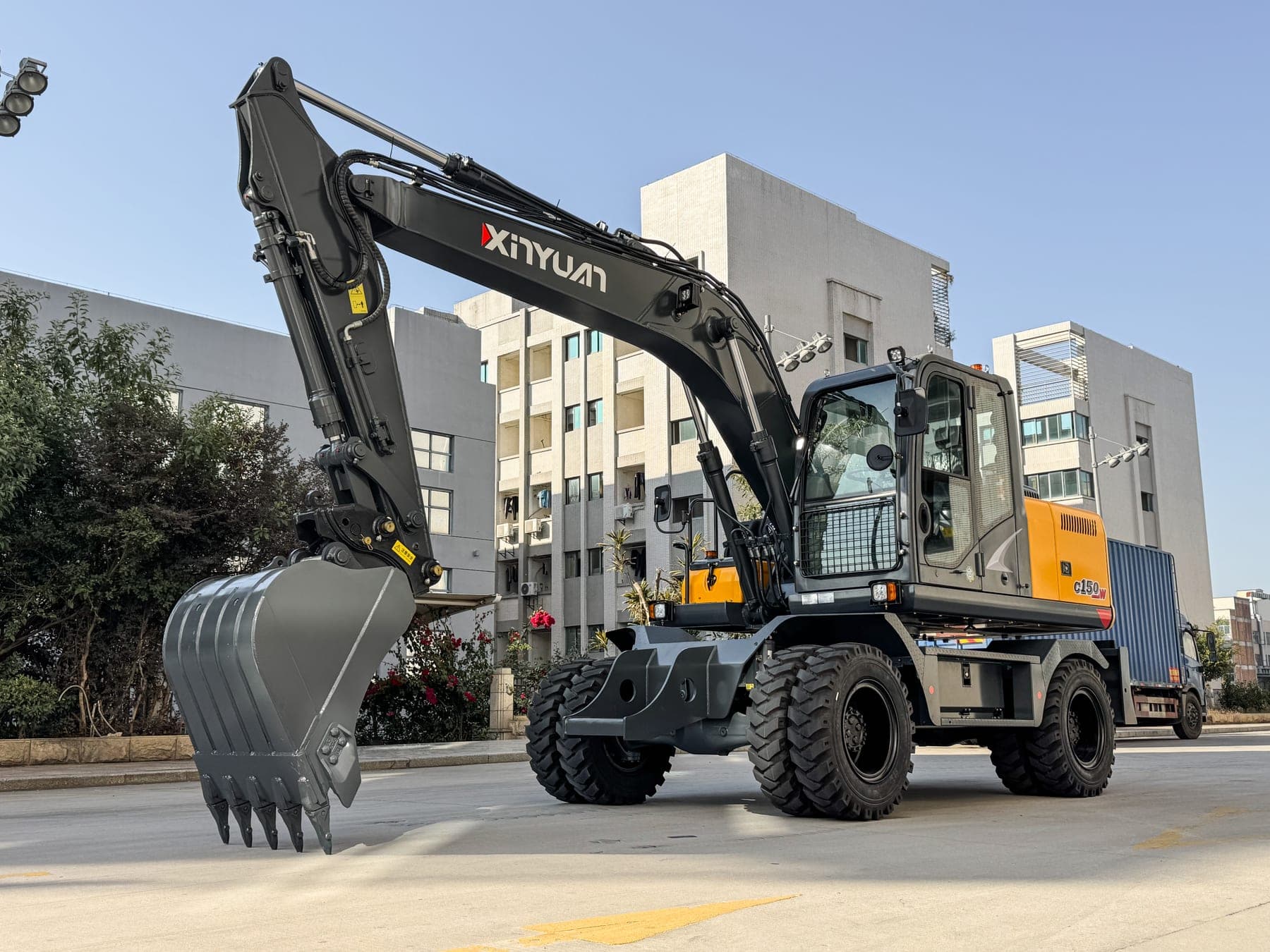

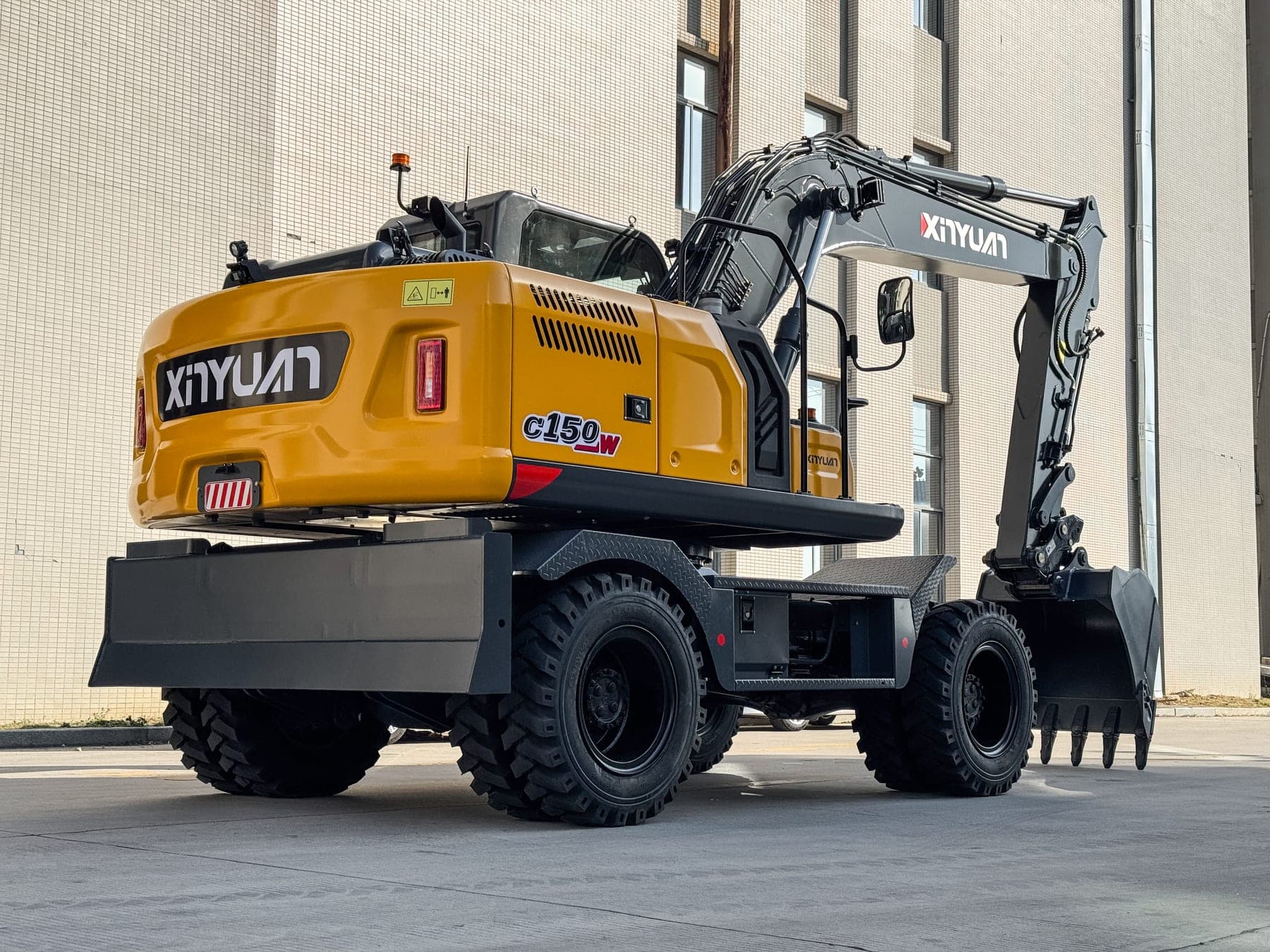

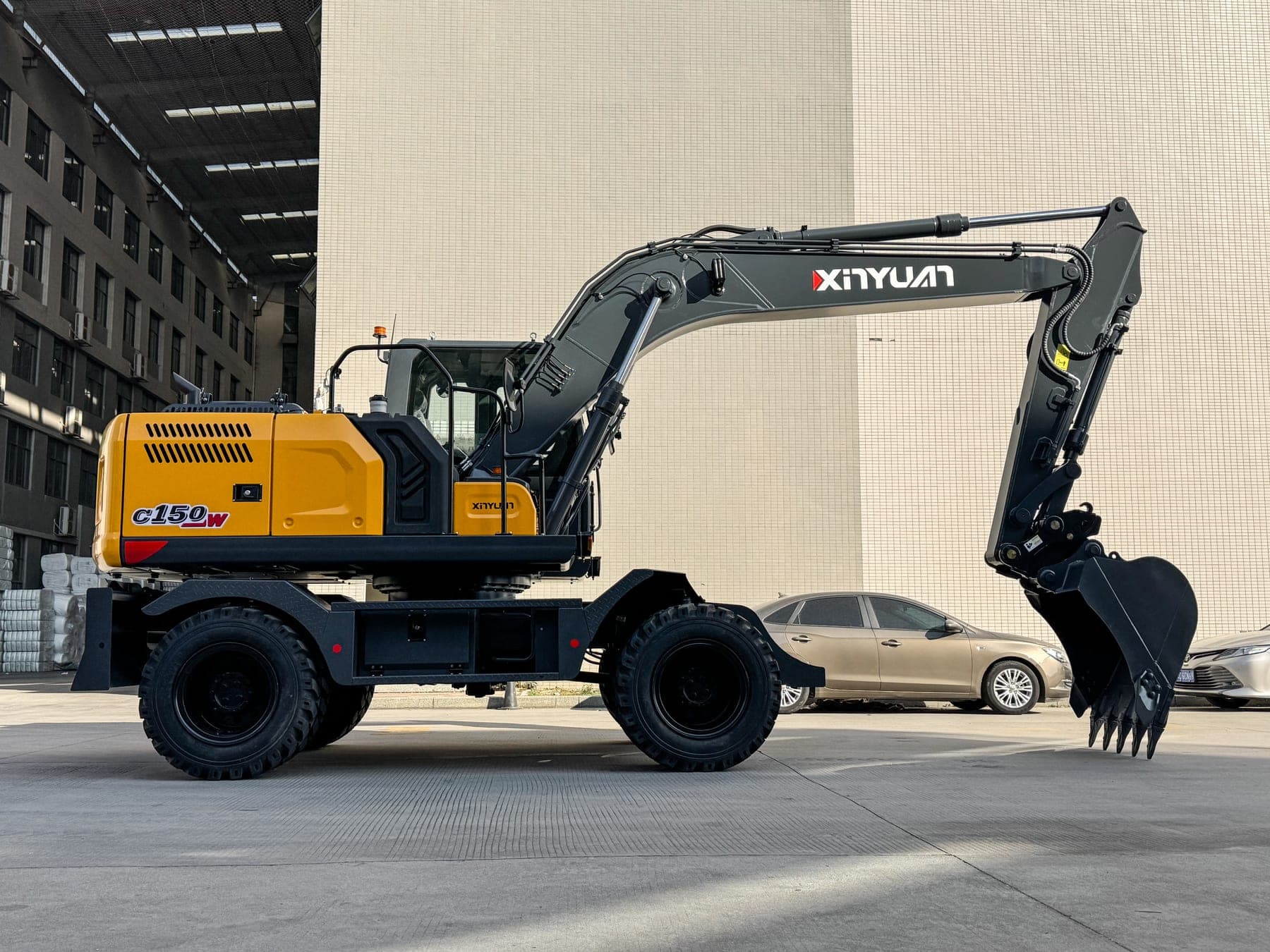

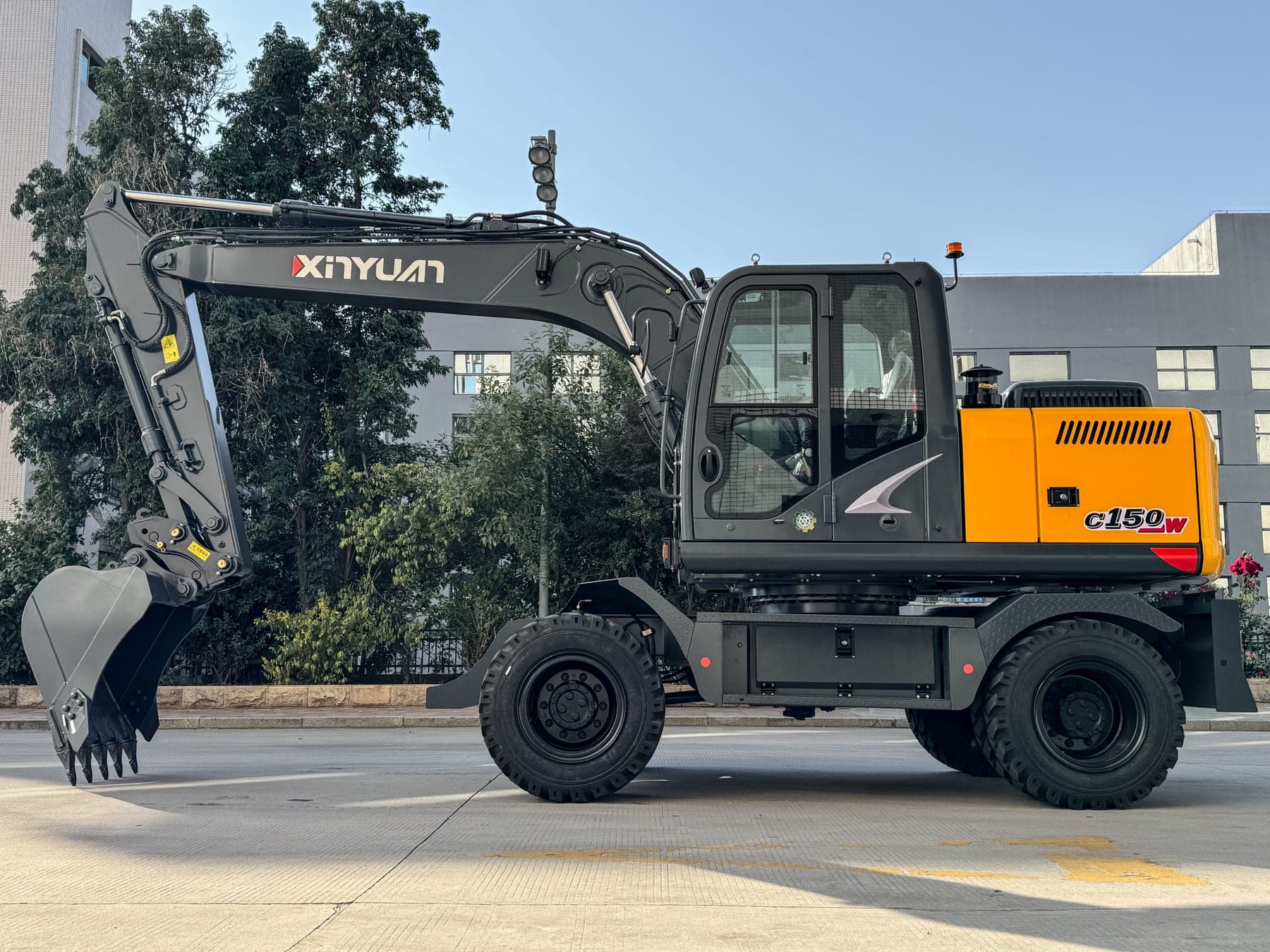

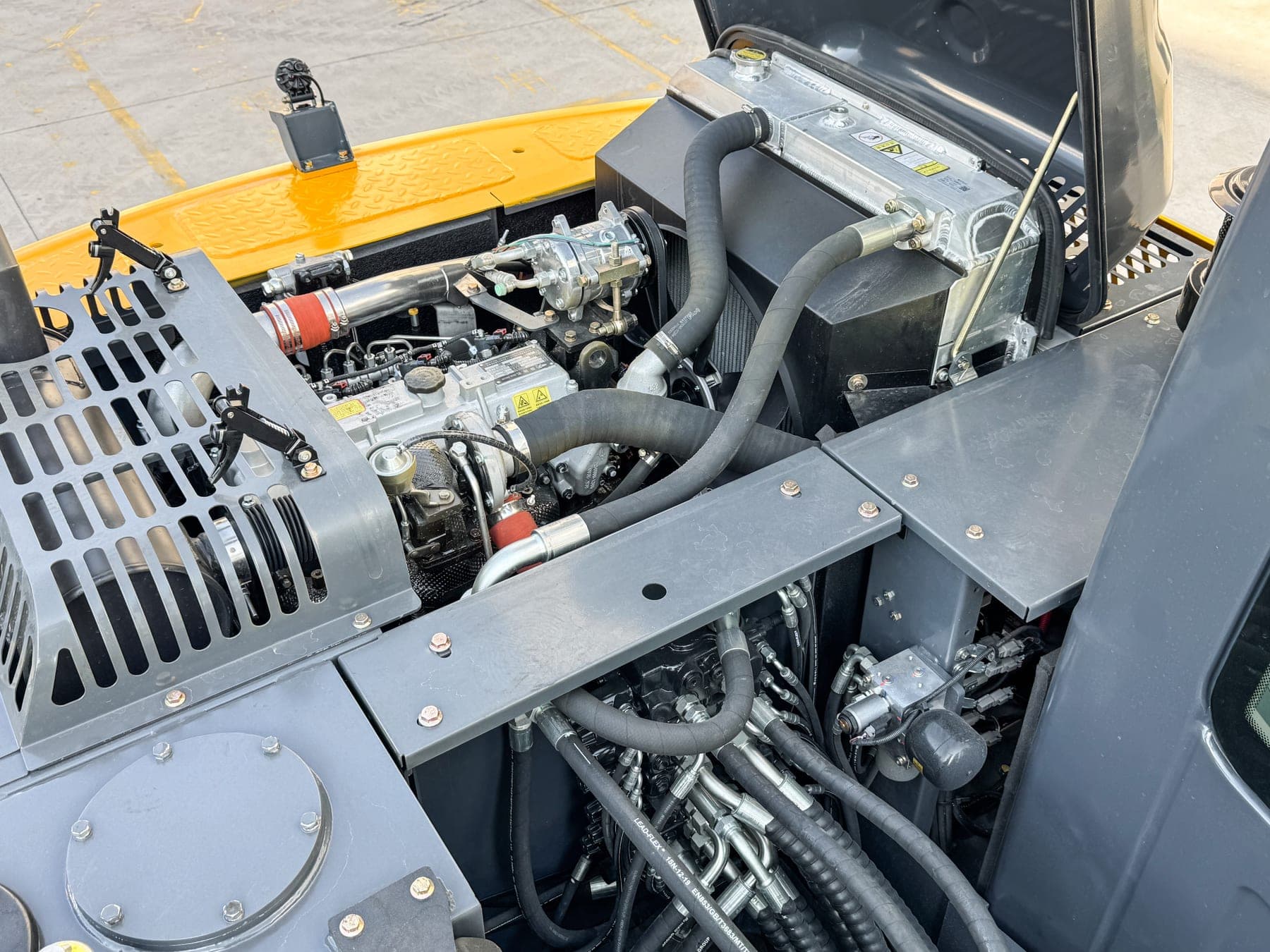

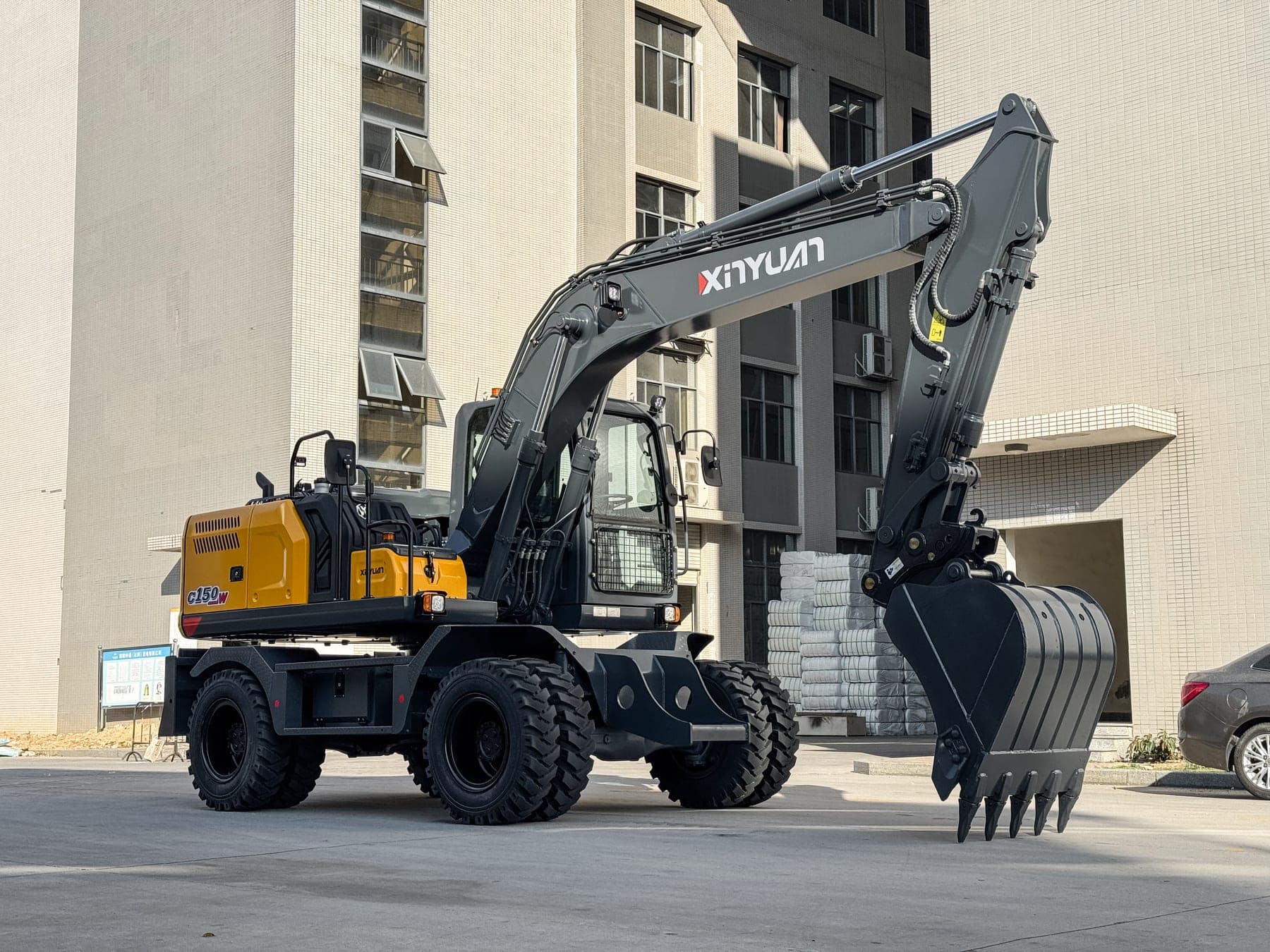

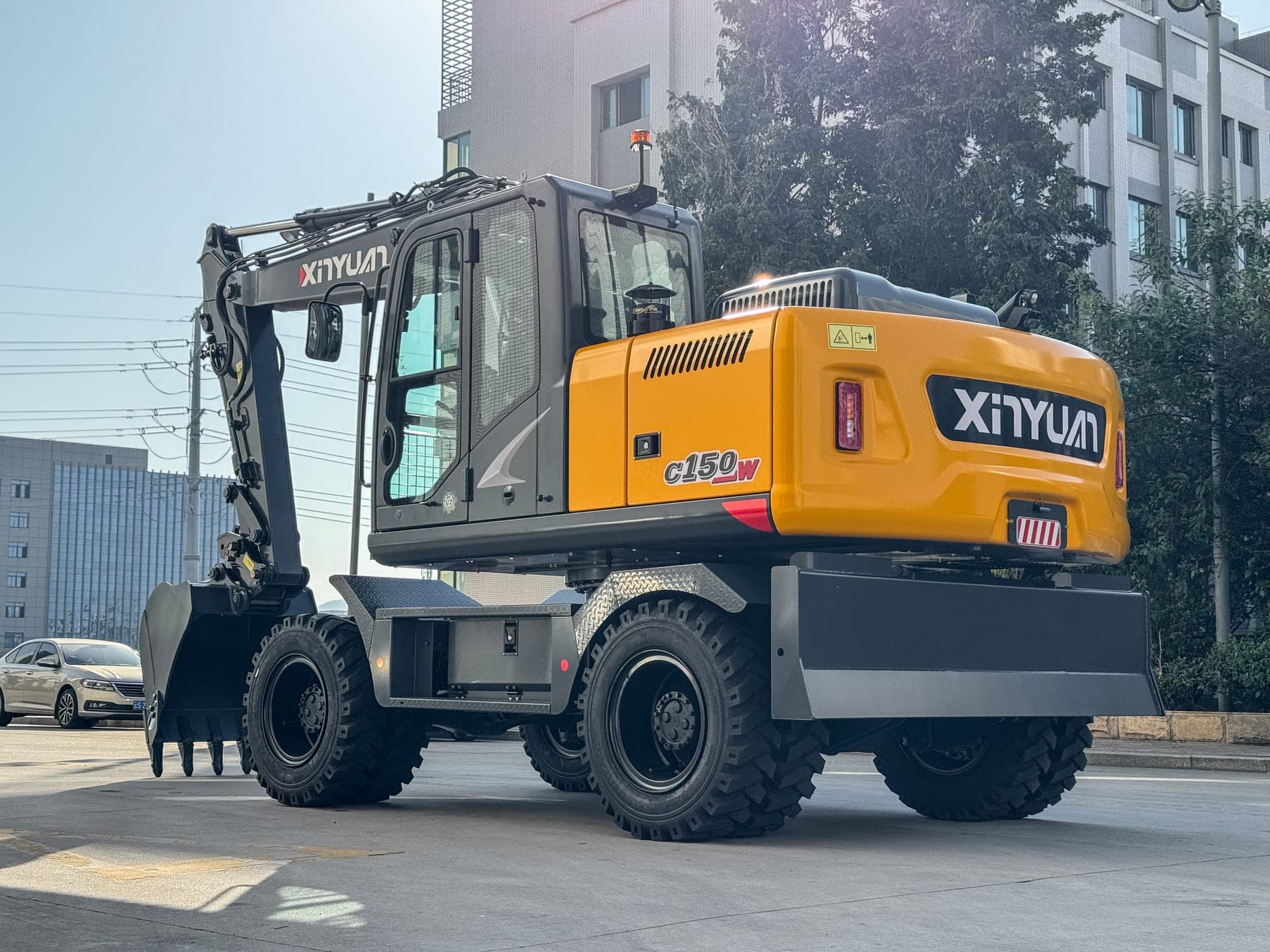

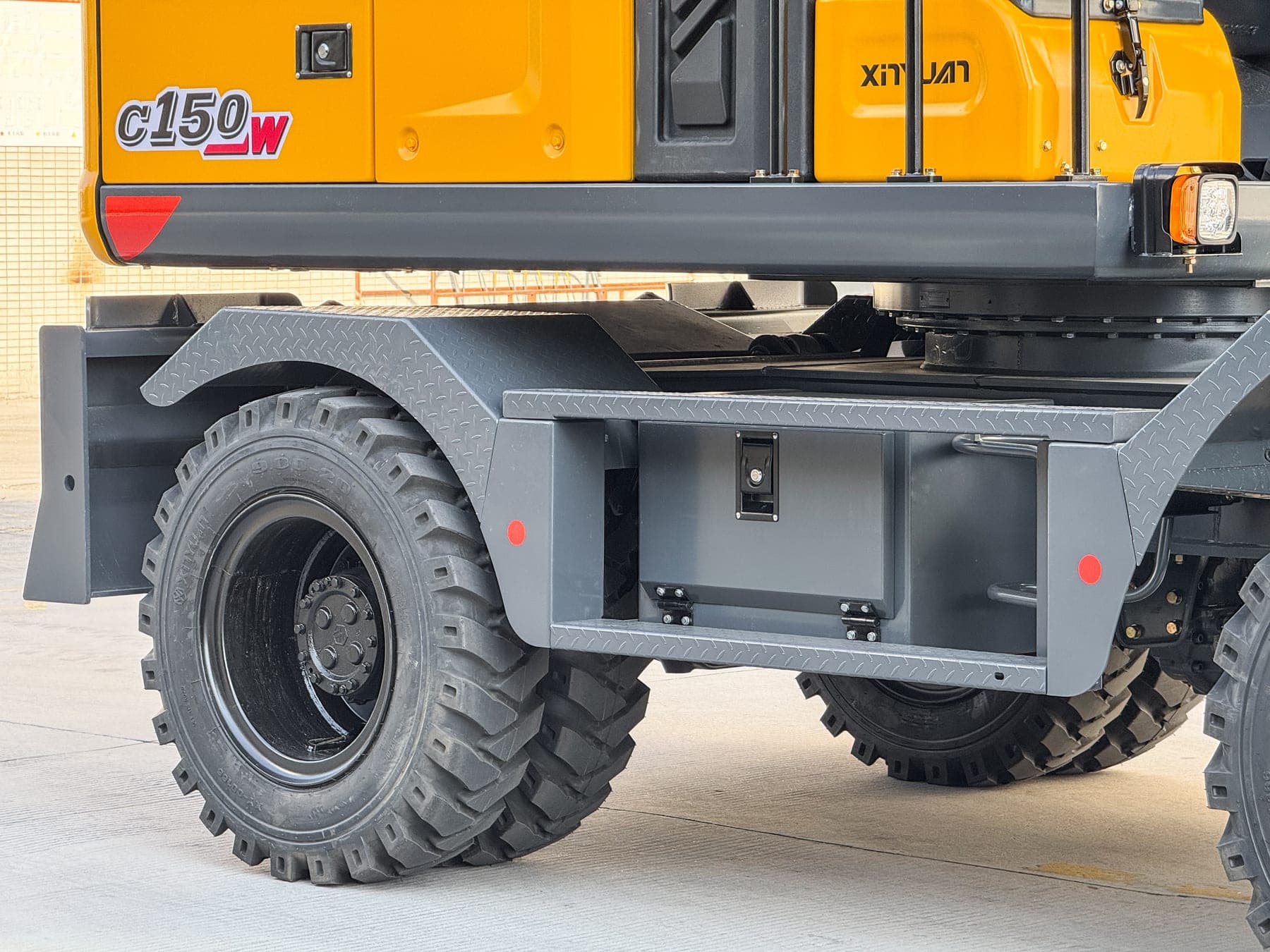

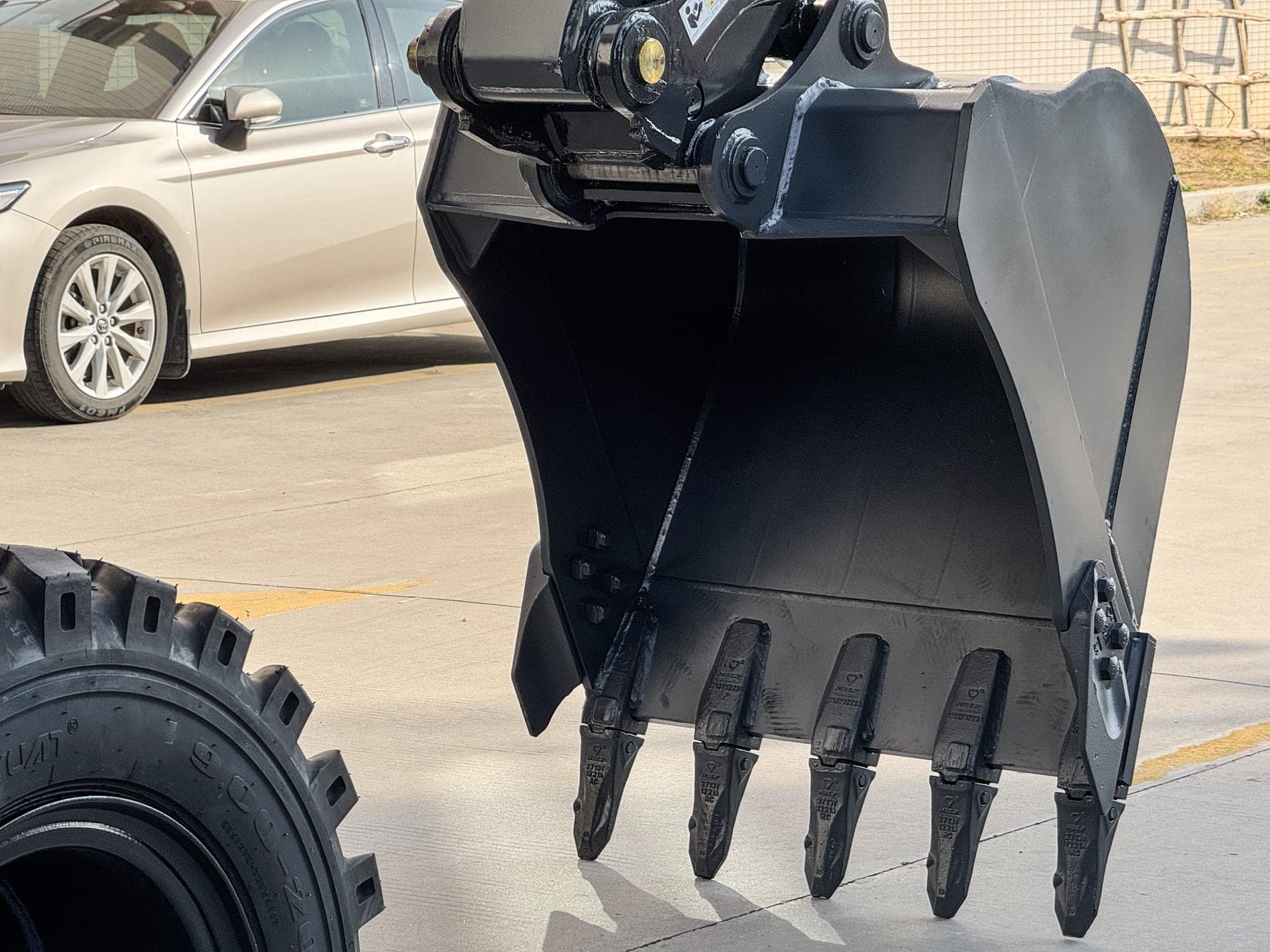

The C150W tops the C Series: 12.5 tonnes on a 118 kW Yuchai A05160, carrying a 0.55 m³ bucket at a 32 MPa relief setting and reaching 8.39 metres out and 5.3 metres down. An extended working device — a 4,600 mm boom on a 2,500 mm arm — covers a large site from fewer set-ups, while a 310 litre fuel tank and 360 mm of ground clearance suit it to days where refuelling and rough ground both cost time.
Specifications
Technical specification
Figures below are as supplied by the manufacturer.
C Series
Explore other variants
Every other model in the C Series line — swing through the family to compare before you decide.
Specifications may vary by region and configuration.
